Guangdong NEW ENERGY Technology Development Co., Ltd. only choose the safe material for manufacturing geothermal heat pump system. Our products feature high efficiency2.
Our products are energy saving. the specifications of geothermal heat pump manufacturer
s,geothermal ground source heat pump can be customized.3.
The cooling capacity and heating capacity for our products are large, NULITE Is A Professional geothermal heat pump for sale, commercial ground source heat pump Manufacturer And Exporter From China.4.
The included geothermal heat pump system features ground source heat pump manufacturers for securing ground source heat pump for sale. The design of our products is more advanced and space saving.

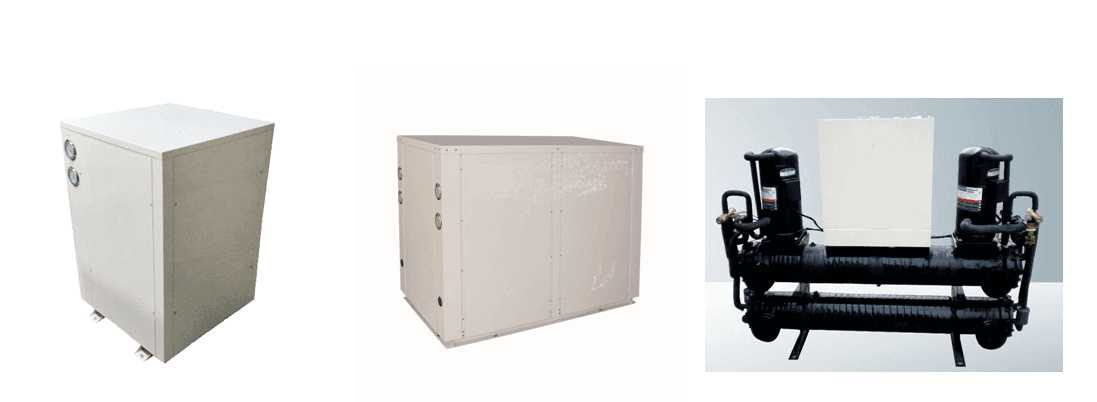

|GS series Geothermal source heat pump(heating and cooling or hot water unit)|
|Rated heating water capicity (W)||W||7400||10800||14300||17700||21100||28100||34000||40800||54300||71300||89200||108700||137000||178000|
|Input power (W)||W||1700||2500||3300||4100||4900||6400||7700||9500||9500||13200||13200||25900||32600||42400|
|COP||4.35 ||4.32 ||4.33 ||4.32 ||4.31 ||4.39 ||4.42 ||4.29 ||5.72 ||5.40 ||6.76 ||4.20 ||4.20 ||4.20 |
|Rated cooling capicity (W)||W||6500||9500||12600||15600||18600||24800||30000||36000||48000||63000||78600||96000||121000||157200|
|Input power (W)||W||1200||1700||2300||2800||3400||4500||5500||6500||8700||11500||14300||17500||22000||28600|
|Voltage (V)||V/Hz/PH||220V- 50Hz-1PH||380V-50Hz-3PH|
|Rated AC water temperature ||°C||7--12°C or 35--45°C|
|Control mode||Microcomputer central processor (linear control)|
|Form||panel or spiral pipe|
|pipe diameter ||DN||25||25||32||32||40||40||40||40||50||65||75||75||100||150|
|Flow Rate ||m3||1.3||1.8||2.5||3.0||3.6||4.8||5.8||7.0||9.3||12.3||15.3||18.7||23.6||30.6|
|Form||panel or spiral pipe|
|pipe diameter ||DN||25||25||32||32||40||40||40||40||40||100||100||150||150||150|
|Flow Rate m³||m³||1.1||1.6||2.2||2.7||3.2||4.3||5.2||6.2||8.3||10.8||13.5||16.5||20.8||27|

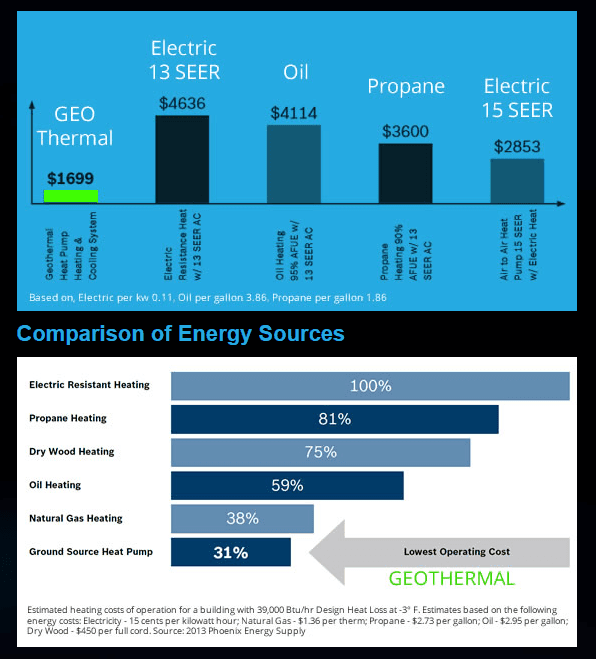

1.Low energy cost with no polution: The biggest benefits of GHPs system is that they use 25%-50% less electricity then conventioal heating or cooling system. This translates into a GHPs using onr unit of electricity to more than there units of heat from earth.
2.Free or reduced-cost Hot water: Unlike any of other heating and cooling system,a high cop heat pump water heater can provide free hot water. A device called a "desupper---heater"transfers excess heat from the heat pumps's compressor to the hot water tank. In the summber,hot water is provide free.I n the winter water heating costs are cut reoughly in half.
3.Year-Round Comfort: While produing low heating bills,high cop heat pump water heaters are quieter than conventional systems and improve humidity control, those features help explain shy customer surveys regulariy show high levels of user satifation,usually well over 90 percent.
4.Saving money: For example,a home of 1,500 square feet,energy cost are about one dollar a day.
5,Multi-functions: five working modes can be selected freely. They are hot water, cooling, heating, hot water + cooling,
and hot water+ heating.
6,The heat exchanger adopts advanced V design which raises the system heat exchanging efficiency about 30%.
7,Super performance with high COP.
9,Wide application: The combined system is widely applied in the commercial sector, suitable for office building, hotel, school, restaurant and etc.
10,High outlet water temperature up to 55 or 60 degree.
HEAT PUMP TYPE
|ground source geothermal Heat Pump Air to Water Heating /hot wate|
|MANUFACTURER||Guangdong NEW ENERGY Group|
|with in total 3 factory in China,|
400,000 sq meters. 500,000 units producing ability, 100,000 units sold in 2016
|HEAT PUMP FUNCTION||Radiator, FCU, Floor Heating Cooling & Hot Water|
|MOQ||10-20 Units(1-2 Sample available with stocks)|
|Minus 30C stable Working|
Central, North & East Market, North America
SUITABLE HEATING SPACE
For Heating solution
TYPE OF HEAT PUMP USING AREA MODEL NAME
Mono block Heat Pump 10.8KW (around 100m2) G3S
Mono block Heat Pump 21KW (around 200m2) G6S
Mono block Heat Pump 38.5KW (around 400m2) NERS-G10D
HEAT PUMP OEM for UA
Customized heat pump manufacturing available with MOQ 20GP or more
HEAT PUMP CONTROLLER
Intelligent Control Panel,with multi-system protection with defrosting function in winter
NEW ENERGY EVI Split HEAT PUMP INSTALLING
Heat Pump Project in Cold Climate Environment
EVI HEAT PUMP PACKAGE STEP 1
EVI HEAT PUMP PACKAGE STEP 2
EVI HEAT PUMP PACKAGE STEP 3
EVI HEAT PUMP PACKAGE STEP 4
EVI HEAT PUMP PACKAGE STEP 5
EVI HEAT PUMP PACKAGE STEP 6
Heat Pump Packing Details : stable plywood box package
Heat Pump Delivery Details : 1-25 working days after receiving payment by T/T, or alibaba trade assurance payment
Heat Pump Dealing Details: EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Service provided
UK country exclusive agency
Our UK exclusive agency is very satisfied with the NEW ENERGY ASHP’s factory scale,heat pump quality,and the technology Innovation of evi inverter high efficiency & minus 35C stable working Solutions,contact with us for more advantageous conditions to be a Exclusive agency in your country.
NULITE is an integrated geothermal heat pump system contractor integrating design, procurement and development. - Call Now! In Order To Meet The Market Demand, NULITE Will Continually Develop New geothermal heat pump manufacturers, geothermal ground source heat pump, commercial ground source heat pump. Please See More Information On Our Website. 2.
Superb processing level for geothermal heat pump for sale is acquired by Guangdong NEW ENERGY Technology Development Co., Ltd..3.
Guangdong NEW ENERGY Technology Development Co., Ltd.'s technology and access to global licences enables us to vigorously compete across all categories within our chosen markets. - NULITE aims to be an international geothermal heat pump system exporter. Call!
