5.1KW all in one air source air to water hot water heat pump model NERS-FDV1.5/S150

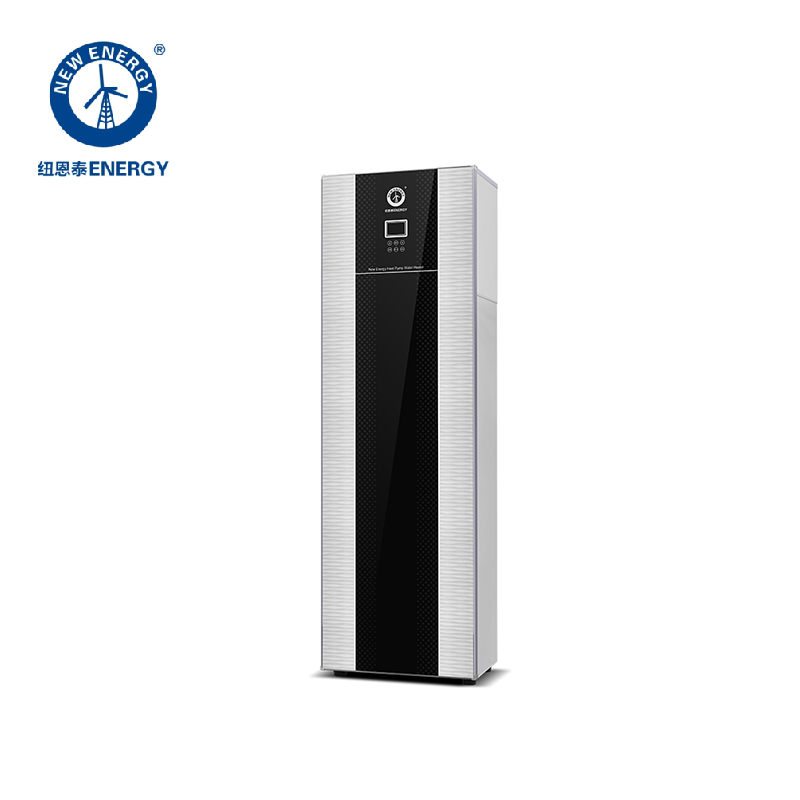

Household all in one hot water heat pump picture
Domestic air source heat pump specification
Model
| NERS-F1.5/S150 |
| Rated heating capacity | 5100W |
| Rated input power/current | 1235W/5.8A |
| Max input power/current | 1730W/8.2A |
| Power supply | 220V-/50Hz |
| Rated output water quantity | 110L/h |
| Rated water volume(dual inner tank) | 150L |
| Rated output water temperature | 55℃ |
| Max output water temperature | 60℃ |
| Compressor | Mitsubishi |
| Refrigerant | R134a |
| Rated of waterproof | IPX4 |
| Rated of Elc.leakage protection | I |
| Net weight | 86kg |
| Noise | ≤48dB(A) |
| Water tank working pressure | ≤0.8MPa |
| Max compressor inlet/outlet pressure | 3.0MPa |
| Max working pressure | 3.0MPa |
| Size(mm) | 562*348*1786 |
| Option colors | Silver, Golden |
All In One Heat Pump:
1.70°C output water temperature and super COP 4.23.
2.Using R134A green refrigeration.
3.Energy saving 75%, saving more running cost.
4.Square design and monoblock type,easy installation .
5.Strong insulation effect, 24 hours water temperature only drop<3 °C.
6.Dual tank technology, higher water output quantity.
Working Principle of Air Source Heat Pump
Heat pumps are machines that extract heat from one place, upgrade it to a higher temperature and move it to
another place. Air source heat pumps systems consist of four major elements that allow the refrigerant to pass
from the liquid state to the gas: a compressor, a condenser, an expansion valve and an evaporator.

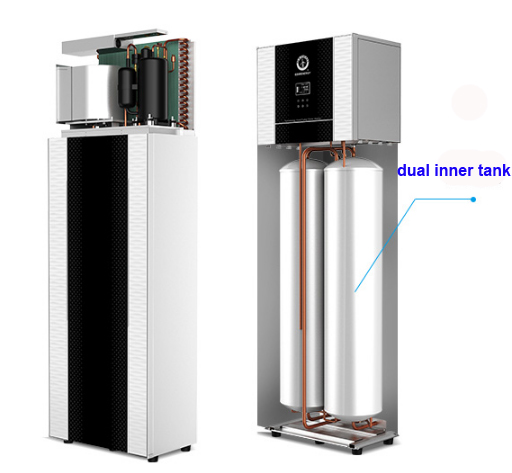

Structure of all in one heat pump
Advantages of FDV1/Y160(A)
1.Luxury LED touch controller
Luxury LCD screen, touch control, flexible water temp. Adjustment, multiple running modes are available, enjoy
comfortable hot water.
2.Max water temperature reaches 70℃
Cold water continuously heat transfer with multiple heat exchangers,max Output water temp. can reach 70℃, hot
water output quantity is much higher than ordinary heat pump unit.
3.Dual water tank heat transfer technology
Hot and cold water storage separated, mixed water is small, heat more thoroughly, making the heat pump water output
quantity each 125%.
Packaging and Shipping
Customer
FAQ
1.What is your advantages,comparing with other water heaters?
Avoiding electric water heater leakage, dry, high power consumption.
Avoiding the drawbacks of gas water heater,such as producing harmful gases,Fits and starts etc.
Energy efficient, safety and environmental protection, all-weather operation, easy to use.
2.What is the function of this heat pump?
1)Domestic hot water all year round
3.What is the testing conditions of heating capacity basing on ?
Hot water test conditions : Ambienttemp.20°C/15°C,Water temp.15°C/55°C
4.How long is the lifetime of the heat pump
12-15 years
5.What's the guarantee time?
2 years.
