3.5~7.3KW DC Inverter all in one heat pump for DHW model NE-B150/100A

3.5~7.3KW DC Inverter all in one heat pump for DHW model NE-B150/100A

Model
NE-B150/10P
MOQ
10-20 Units(1-2 Sample available with stocks)
Place of Origin
china
Delivery Time
7-15 working days
Payment Terms
L/C , T/T, WEST UNION
Certification
ISO9001, CE, erP Energy Label, ROHS, EMC
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Specification
ModelNE-B150/10PNE-B235/80P
Level of securityIPX4IPX4
Electric shock protection grade
Rated power220V~50Hz220V~50Hz
Continous water quantity at 43℃220L360L
heat exchanger tank volume 100L88L
Rated heating capacity5100W10500W
Rated input power/ current1210W/5.6A2490W/11.0A
heating capacity range3500-7300W6500-15000W
 input power850-1800W1300-3800W
Max input power/ current2400W/11A4840W/21.7A
Refrigerant/ injection volumeR410A/1650gR410A/2800g



Compressor

form Twin RotaryTwin Rotary
quantity 11
brand Mitsubishi Mitsubishi


Unit

weight 95110
Net size 518*461*1692715*400*1650
Rated water temp55℃55℃
Max water temp60℃60℃
noise≤50dB(A)≤52dB(A)
water tank working pressure ≤0.8MPa≤0.8MPa
Max allowable pressure of heat exchanger4.4MPa4.4MPa
Max allowable pressure of high/low pressure4.4MPa4.4MPa
ColorRedRed
Ambient temperature  -25℃-43℃ -25℃-43℃
Inlet&outlet pipe diameterDN20DN20
Heating test conditions : Ambient temp.20℃/15℃,Water temp.15℃/55℃
Remark:
Price term: EXW
Warranty: 2 years.
Payment accept: T/T, 30% in advance, 70% balance before shipment.
Delivery time: 25~35 working days.
Package:Super wooden box
Valid time: 30 days

Instant water heater inverter heat pump:

  •

    1.Internation brand twin rotary compressor,high efficient.

  •

    2.Using R410A green refrigeration.

  •

    3.Energy saving 80%.Instant heating and hot water.

  •

    4.Mini size and monoblock type ,easy installation .

  •

    5.High temperature heat pump.output 60°C .

  •

    6.Inverter heat pump,-25℃ low ambient temperature operation.

  •

    7.Inverter instant heating technology,instant water heater.

Product Application

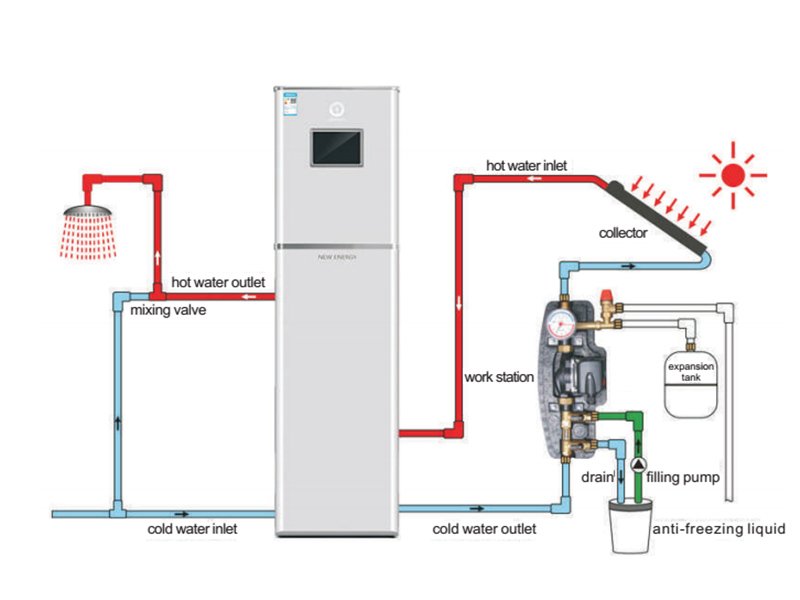

Double system

undefined


Product Advantapes


undefined
undefined
undefined
undefined

1.Dc inverter, fast heating
Dc inverter technology, maximum heating capacity, instant heating, 24 hours hot water supply.
2.Central hot water, comfortable
Maximum hot water, satisfy supply hot water in the same time, constant water temperature, central hot water enjoyment.
3.80% energy-saving
Heating by absorbing a lot of energy from air, save 80% electricity by compare with electric water heater.
4.Water and electricity separation
No boil, no exhaust emission, separate water and electricity,no leakage potential, safe ad environmental.

NULITE-Find 35~73kw DC Inverter All In One Heat Pump, Monobloc Air Source Heat Pump-5

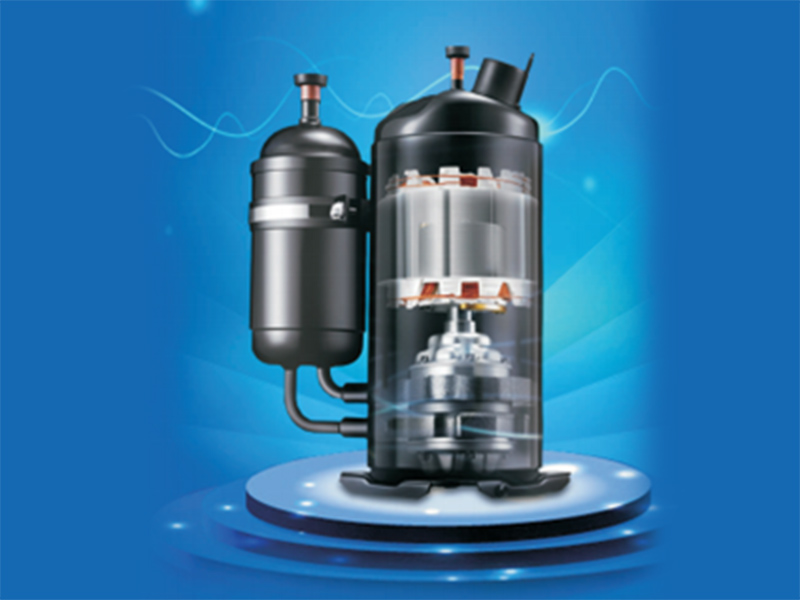

Mitsubishi DC Inverter Compressor
Fast heating &energy-saving, automatically control for different demand; adopted twin-rotor spot-balance technology, running smoothly, lower noise, longer life time. Adapting to work stably in -25C environment prove much heating capacity performance in low ambient environment.

*Twin-rotor dc inverter

*R410a green refrigerant

*-25 ℃ ultra low temperature

*200% heating capacity production

Heat Pump Details


NEW ENERGY

ALL-IN-ONE MONOBLOCK DC INVERTER AIR TO WATER HEAT PUMP

  •

    1.ASHP Heating Capacity:  All-in-one 3.5~7.3KW.

  •

    2.Best Selling Market:  Central, North & East Europe, North Europe, Asia.

  •

    3.Ambient Temp of Using:  Minus 15C, highest 60C hot Water Output.

  •

    4.Certification: ISO9001, CE, erP Energy Label, ROHS.

  •

    5.Use *Mitsubishi* dual-rotor Compressor for all-in-one Air Source Heat Pump.


HEAT PUMP TYPE

Monoblock All-in-one Heat Pump Air to Water Heat Pump

ALL-IN-ONE 3.5~7.3KW(100L)-6.5~15KW(88L)

DHW+FREE COOLING

MANUFACTURERGuangdong NEW ENERGY Group

FACTORY SCALE

with in total 3 factory in China,

400,000 sq meters. 500,000 units producing ability, 100,000 units sold in 2016

HEAT PUMP FUNCTIONRadiator, FCU, Floor Heating Cooling & Hot Water
MOQ5-10 Units(1-2 Sample available with stocks)
EFFICIENCYCOP 3.5-5 at Ambient 7C-25C

SUITABLE MARKET

Minus 25C stable Working

Asia,Central, North & East Europe



SUITABLE HEATING SPACE

         TYPE OF HEAT PUMP                       MODEL NAME          USING AREA

All-in one Heat Pump 3.5~7.3KW(100I)      NE-B150/100A          (2-3 persons)

All-in one Heat Pump 6.5~15KW(88I)          NE-B235/80P           (3-4 persons)

Heat Pump base


undefined
undefined
undefined
Package & Delivery


undefined
undefined
undefined


undefined
undefined
undefined
undefined
Related products


undefinedSolar+inverter heat pump
(heating and hot water)
undefined7~11kw inverter heat pump
(heating, cooling and hot water)
undefined3.9kw split inverter heat pump
(split type, heating and hot water)
