|Rated heating capicity||KW||125||17.5||35||72|
|Rated cooling capicity||KW||92||13.7||27.4||56|
|Rated input power||KW||32.4||4.56||9.12||18.5|
|Max input power||KW||46||6.5||13.1||27.2|
|Rated output cool water temp||°C||8°C～12°C|
|Rated output heating water temp||°C||25°C～40°C|
|Control mode||Microcomputer central processor (linear control)|
|Form|| EVI Scroll type|
|Nosie level||dB(A) ||≤76||≤54||≤64.5||≤74|
|Form||ABS plastic leaves||magnesium aluminum alloy leaves|
|Fan power ||W||740*4||200*2||500*2||740*2|
|Ambient temperature||°C||（-25℃ -- 46℃）|
|Inlet pipe diameter||DN80||DN25||DN40||DN65|
|Outlet pipe diameter||DN21||DN25||DN40||DN65|
Best Selling Market: Central Europe North & East Europe, North Europe, North America
Certification: ISO9001, CE, erP Energy Label, ROHS, EMC
1.ASHP Heating Capacity: EVI Split 9KW 15KW 18KW DC Inverter Split 10KW 20KW.
2.Base frame and external panels made of galvanized powder coated steel.
3.Exchanger equipped with high efficiency shell in tube heat exchanger.
4.Work under the temperature -25°C stably with good COP, by adopting the super EVI tech.
5.High efficiency compressor with R407C refrigerant.
6.Fully sealed control box with water proof level IPX4.
7.Intelligent controller and adjustment by intelligent microprocessor.
8.Thermostatic heating element for evaporator anti-frosting protection.
9.Electrical expansion valve.
10.Automatic defrosting function included.
1.High efficiency energy conservation save electricity consumption 75%
Absorb free enegry from air ro make heating capacity .producing 4kw heating capacity by consuming 1 kw ,save 75% electricity consumption than traditional heater .
2.Safe and reliable environment pollution
Avoid the flammable ,expolsive .leakage trouble of traditional heater fundamentallty,no emissions abandon .safe and environment

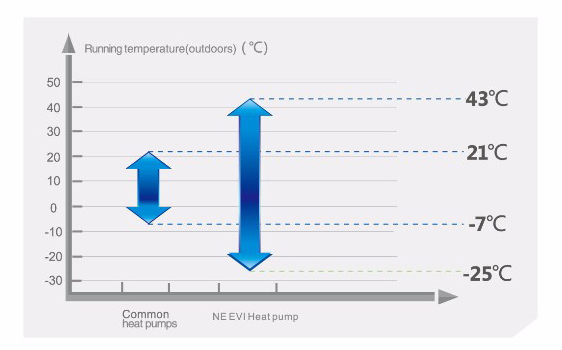

3.Running stably in -25C ambient temperature
Applying the EVI technology makes unit work running in -25C ambient temperature
4.Multifunction avaliable heating+cooling
Run cooling mode in summer and run heating mode in winter .one unit used for different function to save cost on machine
Advantage of low temperaturfe heating cooling heat punp GKD series
1.Adapting intelligent temperature compensation technology,the unit can adjust the setting temperature according to the ambient temperature to provide hot water with comfortable temperature for you.
2.The use of stepless speed fan motor can adjust the fan speed according to different working conditions and broaden the application range of the unit.
3.With strong - countercurrent design,the patented C&S heat exchanger is conductive to improving the Efficiency and reliability of the unit.
4.Air exchanger(fins-coil)with hydrophilic coating has stronger anti-corrosion feature and performs higher efficiency.

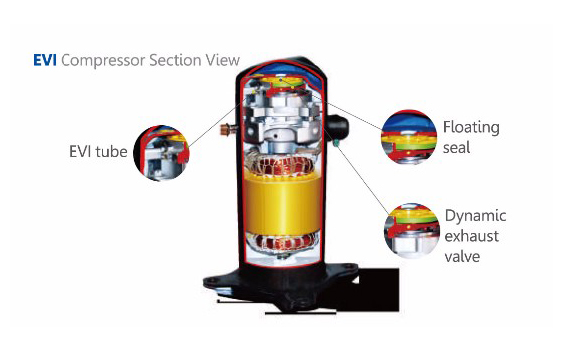

5.The EVI compressor ensures the unit operate safely at low ambient temperature with higher efficiency and lower noise.
6.The world famous brand electronic expansion valve controls the volume the refrigerant accurately and reduces energy consumption.
